The visual-interaction tax: what a VLM web agent pays for the human GUI

Question — what does the human-facing GUI cost a VLM web agent?

A web GUI is designed for humans; a VLM agent uses it because that’s what the app happens to expose. Using it isn’t free: the agent must read pixels, infer what’s clickable, and aim coordinates before any task reasoning pays off.
This post measures that price. Call it the visual-interaction tax: the success-rate gap between running a task through the human GUI and running the same task through an equivalent text interface.
Webstep makes the measurement clean: each web app is a deterministic MDP (state, fixed action set, pure transitions), and the GUI is just one rendering of it. Render the same MDP as pixels or as text — same information, same tasks, same model; only the interface differs. The performance gap is the tax.

Model: Qwen3.5-9B (unified multimodal), one vLLM server, greedy decoding (temp 0).
Benchmark: Webstep — deterministic MDP web tasks, 10 sites, 220 tasks. Both conditions run the identical task set (fixed seed), same 3-step memory window, same per-episode cap.
GUI condition: observation = screenshot; actions = pixel coordinates.
text-MDP condition: observation = the site’s observe() output serialized to text (visibility-filtered → the same information the screen shows); actions = semantic {type, payload} applied directly through the MDP (dispatch), no pixels, no coordinates.
Only the interface differs; the model, tasks, decoding, and judge are held fixed.

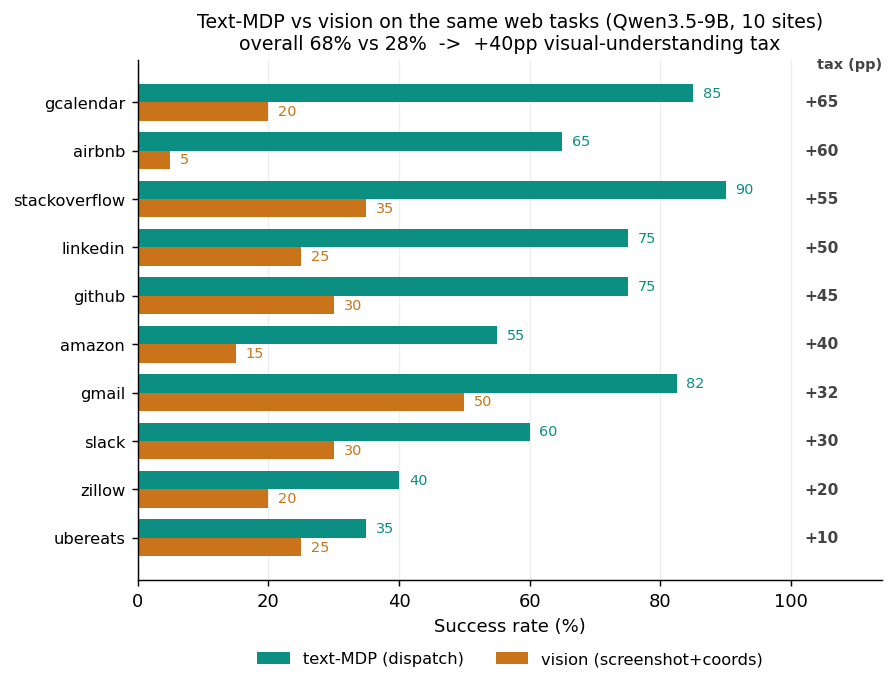

Overall: text-MDP 68% vs GUI 28% → a +40pp tax. The same weights solve ~2.4× more tasks when the interface is text — so a large share of GUI-condition failures were interface failures, not task failures.
The tax is universal, not site-specific: text wins on all 10 sites (+10pp → +65pp), and the GUI condition never clears 50% anywhere.

Text-MDP reaches 68%, not 100%: on multi-step tasks (open several items, compare an attribute, commit) the 9B loops — re-issuing the same action until the step cap.
So the interface is not the whole story: even with the GUI cost at zero, a real execution/reasoning gap remains.
Caveat (unverified): the full action history is in context, and the looping looks like a small model failing to exploit it — plausibly a 9B capability ceiling rather than something fundamental. Untested at larger scale (see Caveats).

Switching to text removes the whole GUI stack at once: (1) perception (read the screen), (2) affordance inference (what’s actionable), (3) coordinate grounding (where to click).
So +40pp prices the bundle, not any single layer — a “visual-interaction tax,” not a “grounding tax.” Which layer dominates is an open question (below).

Model scale: measured at the ~9B scale, single model/seed, greedy. Screenshot grounding improves with scale and grounding-specialized training, so the tax is likely smaller for larger or computer-use-tuned models — untested here (a scale run was blocked on disk). Even at temp 0, run-to-run variance is ~2–3pp (vLLM batching).
Idealized text interface: the MDP’s observe()/dispatch is a best-case machine channel that real websites don’t expose; realistic stand-ins (DOM, accessibility tree) are noisier. Read +40pp as an upper bound on what a text channel could recover.
Fairness fix: the text view initially didn’t expose the sites’ filter/sort vocabularies (which the GUI agent sees as dropdown options), so text hallucinated invalid filters. We surfaced the real allow-lists from the transition functions before the final run; it restored parity but didn’t move the aggregate (the bottleneck is comparison, not filtering).

Which layer dominates the tax? Ablations that move one layer at a time — text observations with coordinate actions, screenshots with semantic actions, Set-of-Mark-style annotated screenshots — would split the +40pp across perception / affordance / grounding.
What would an agent-friendly UI be? The text-MDP is ground truth the wild doesn’t offer. Among realistic channels — DOM, accessibility tree, semantic action APIs — which noisy approximation retains most of the tax refund, and at what serialization cost (token length, staleness)?

At the ~9B scale, a VLM web agent pays a +40pp visual-interaction tax for the human-facing GUI (28% → 68% on identical tasks, worse on all 10 sites) — a measurement of the interface’s price, not a prescription about interfaces and not GUI abolition.
And the interface isn’t everything: remove the tax and multi-step execution still fails — the residual 32% is an execution/reasoning gap, possibly just model scale.
