What I tested & how

Document Parse is Upstage’s document-structuring model. I fed it three single pages from a paper — one with a merged-cell results table, one with quantitative charts, one with a pipeline diagram — and split the evaluation into two tracks:

Track A · Localization — where is each element? I overlay the predicted boxes on the page and check them against hand-counted element counts (recall).
Track B · Understanding — how does it rewrite each element into machine-readable HTML? I compare the chart structuring against the original charts read by eye.

Document Parse takes no natural-language prompt — only parameters — so this measures the model’s built-in behavior, not prompt engineering. The concrete question: does it convert chart → data and diagram → structure, or just detect them?

Setup

Model: document-parse, base64_encoding=['table','figure','chart','equation']
Dataset (3 paper pages): table_page (merged-cell results table), chart_page (quantitative charts), diagram_page (pipeline diagram)
Track A — Localization: the model predicts bounding-box regions. category · coordinates (normalized polygon bbox) · base64_encoding (crop) → eyeballed via a bbox overlay.
Track B — Understanding: the model rewrites elements into an LLM-understandable form in content.html (table/chart structuring, diagrams) rather than just a bbox.
Prompt used: none (Parse takes parameters only) — model=document-parse, base64_encoding=['table','figure','chart','equation']. What to detect/structure is not specified in natural language.

Result

Track A — Localization: it catches the regions well

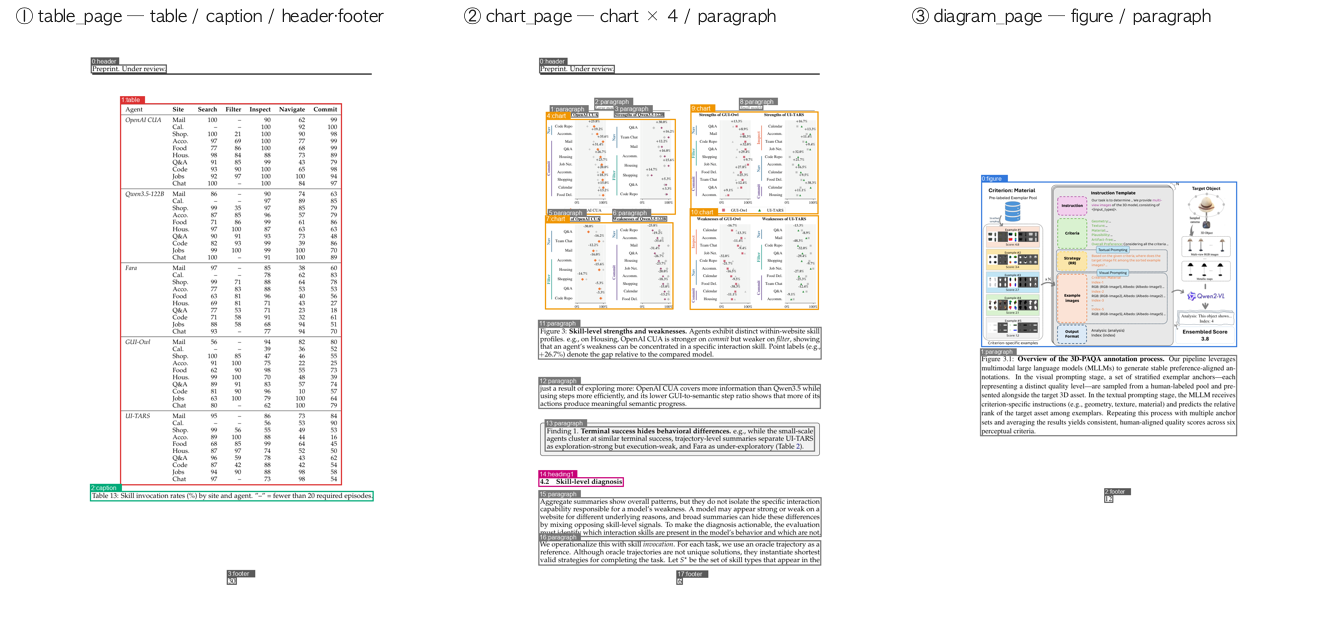

It catches every primary element — tables, charts, diagrams — 6 out of 6.

Caption detection is inconsistent, though: it gets the table caption but classifies the diagram caption as body text (paragraph) and misses it (1 out of 2).
Each element comes back with its position coordinates and a cropped image.

Track B — Understanding: charts keep the numbers but lose the structure

The numbers are read correctly, but almost all of the chart’s structure is lost.

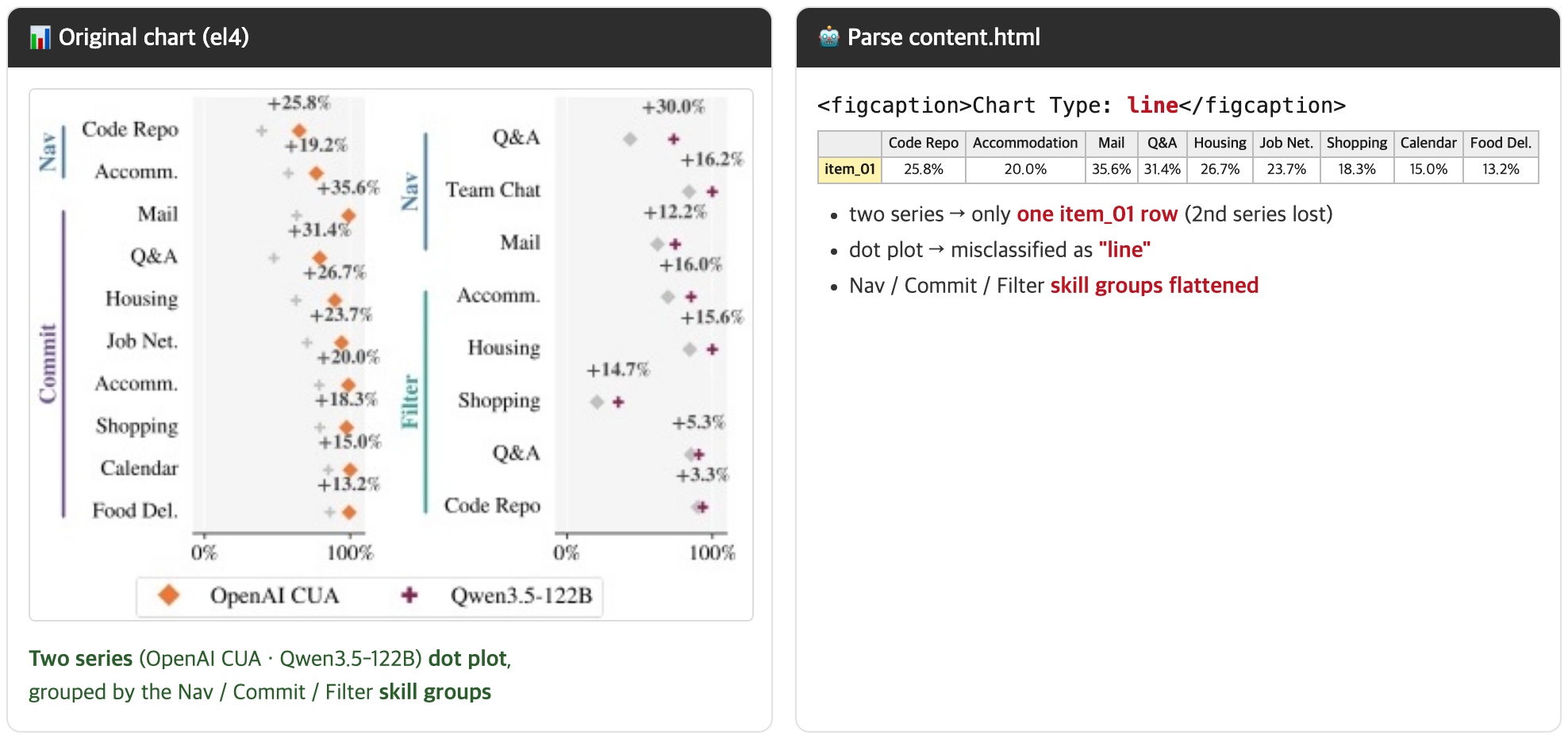

The original is a dot plot comparing two models (OpenAI CUA · Qwen3.5), but Parse keeps only one series (a single item_01 row).
It misclassifies the dot plot as line/bar, and flattens the Nav/Commit/Filter skill grouping.
The same thing happens across all four charts (series lost 4/4, type misclassified 4/4). The values themselves are accurate.
The diagram isn’t structured at all — only an image placeholder is left.

Finding

It provides both capture (crop) and documentation (HTML):
- the same element comes back as a bbox + a cropped image + structured HTML, all at once.
It does “attempt” chart→data structuring (it produces a table) — but fidelity is low because of chart-type confusion (dot→line) and multi-series loss.
It doesn’t convert diagrams into structure (detection + label OCR only). For diagrams that carry no data, this seems like reasonable behavior.
For bounding boxes, region separation is clean, but the hierarchy isn’t consistent (visible in the difference between chart10 and chart7).
Table structuring is achieved at close to 100%.
