Upstage Products Evaluation — In-the-wild 1: Paper Review (Document Parse × Solar-pro3)

In-the-wild 1 / Document Parse × Solar-pro3 — an end-to-end document task.

What I tested & how

This is the first of two experiments that chain Upstage’s document models with Solar-pro3 in one pipeline. Here, Document Parse extracts a 47-page paper (tables as HTML), then Solar-pro3 reads that and writes a weakness-diagnosis report for one agent (OpenAI CUA), with supporting tables and quotes.

I deliberately added no hallucination-suppressing constraints — I wanted to see the model as-is — and then checked two things separately:

1. Conversion boundary — how much of the paper’s table / chart / figure actually reaches a text LLM?
2. Grounding vs. reasoning — does Solar cite the numbers correctly (checked automatically against the real tables), and is the diagnosis built on those numbers sound (checked by hand)?

Setup

• Task: Parse-extracted paper (tables = HTML) → Solar diagnoses OpenAI CUA’s weak skills and proposes dataset augmentation, with supporting tables and quotes. No hallucination-suppressing constraints — observe performance as-is.
• Pipeline: document-parse (47 pp) → solar-pro3 (temp 0). Figures are excluded from the text path (Solar can’t see images).
• Dataset: 2026webstep.pdf (47 pp) — 23 tables · 7 charts · 25 figures.

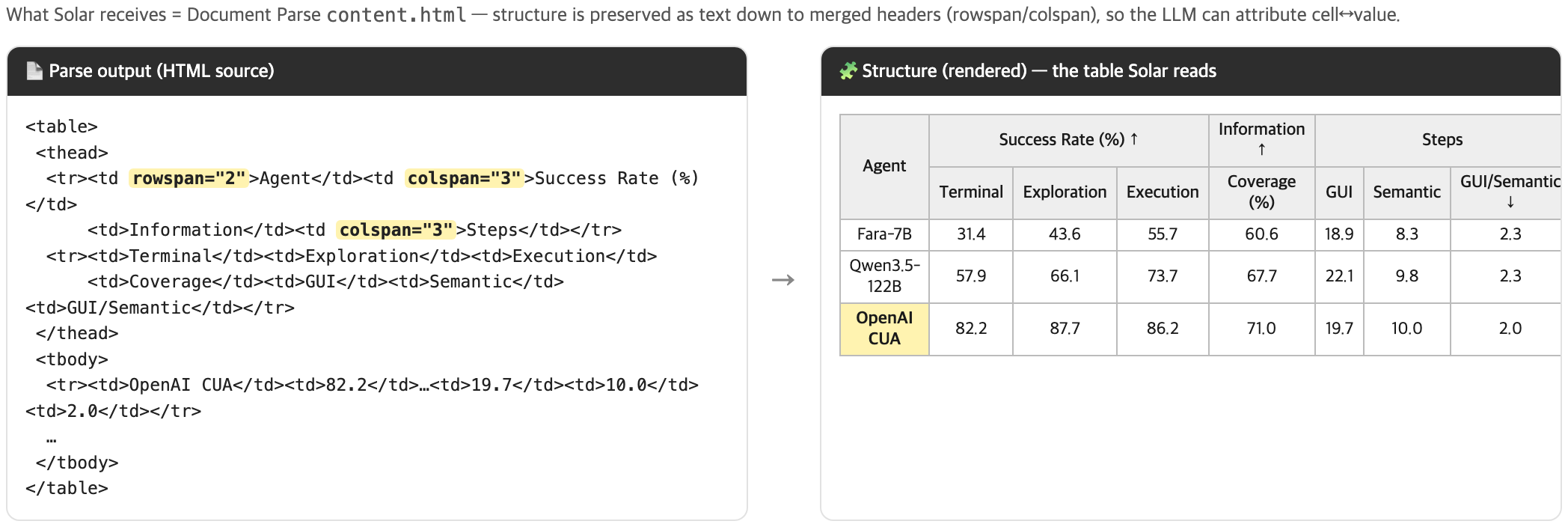

• Input form: tables are <table> HTML preserving even merged headers (rowspan/colspan), so the LLM can attribute cell ↔ value.

• Metric: the match rate of CUA-row numbers against the real table values (grounding) + a manual check of semantic/reasoning hallucination.
• Output: results/report/webstep_review.md, exp4_table_fidelity.json.

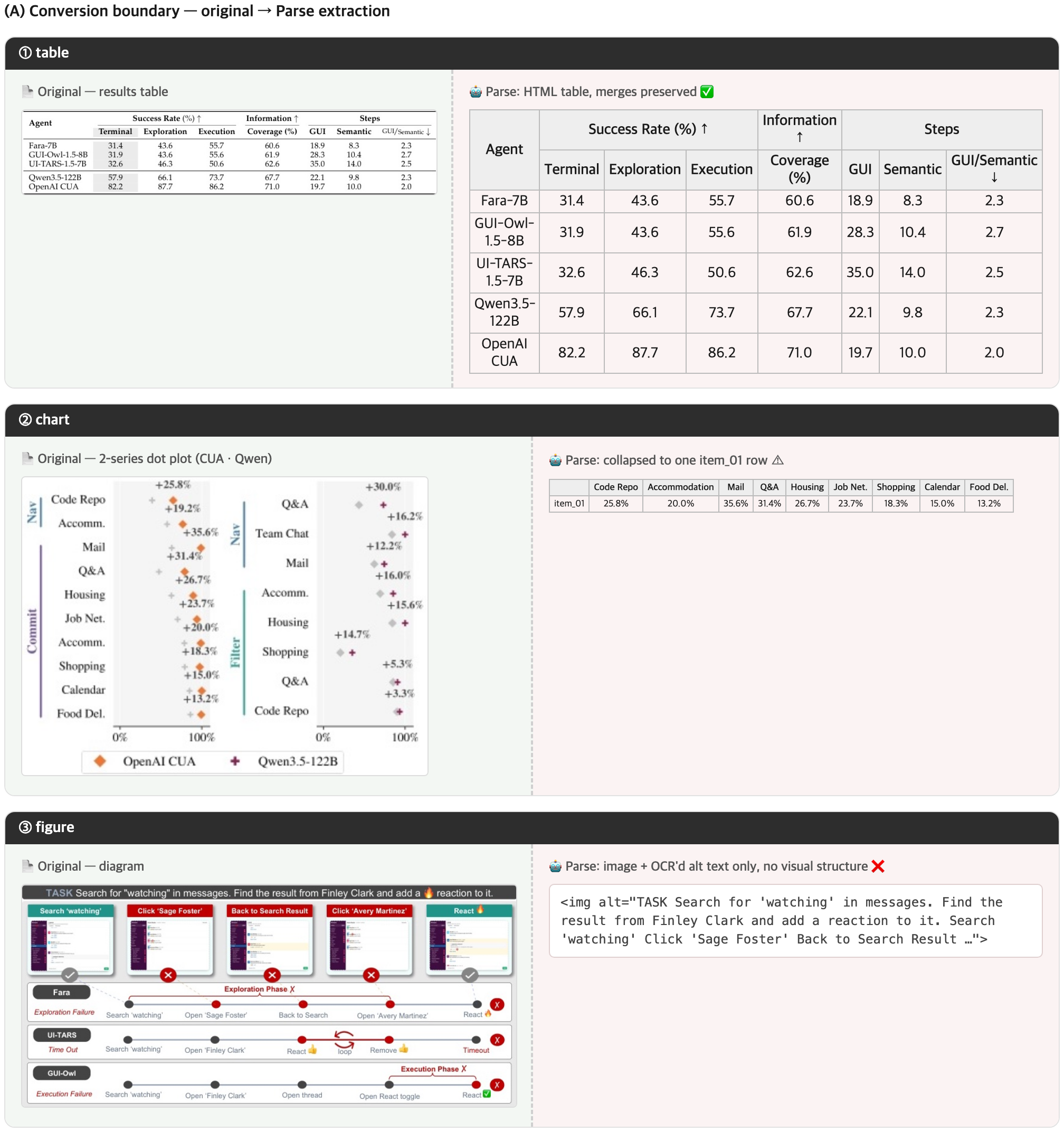

Result 1 — Conversion boundary: tables work, charts and figures don’t

The only thing that reaches a text LLM intact is the table.

Element	What Parse produces	Can a text LLM use it
Table	HTML table preserving merges	✅ usable as-is (numeric grounding 100%)
Chart	reads values but collapses to one row (item_01)	⚠ numbers only, no series/hierarchy
Figure	image + OCR of text inside	❌ the model can’t see it

Result 2 — The table’s numbers are trustworthy (grounding 100%)

Every one of the 25 numbers the report attributed to CUA matched the real table values — zero invented.

• It reconstructed the per-site and information-access tables with their actual values, and even cited real passages from the paper.

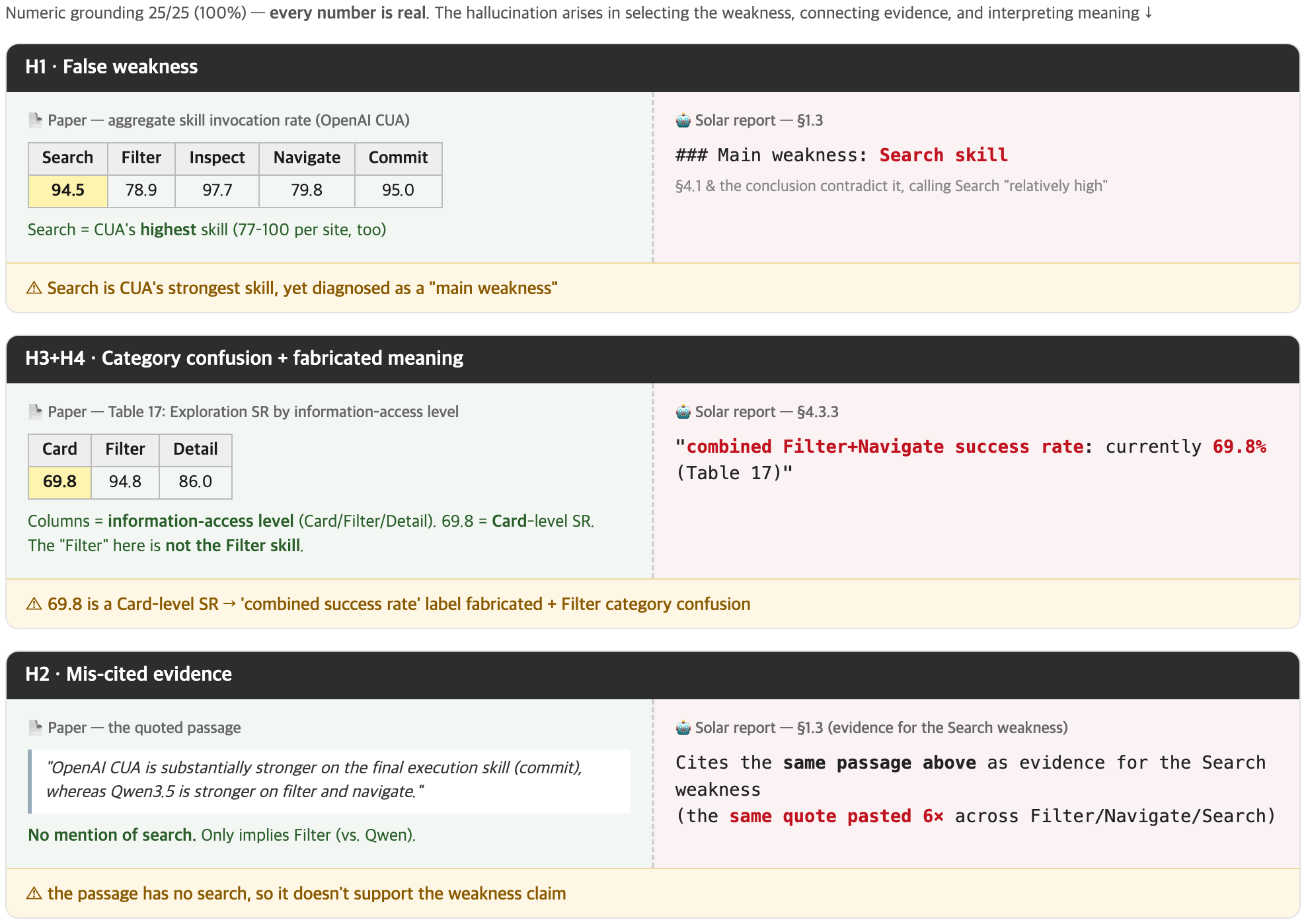

Result 3 — But the reasoning hallucinates

The numbers are all correct, but the judgments drawn from them are wrong. So the value-only automatic check (grounding 100%) catches none of the errors below.

#	Type	What’s wrong (vs. the table values)
H1	False weakness	Calls Search a weakness, when it’s actually CUA’s strongest skill (94.5%). The conclusion then contradicts itself, calling it “high.”
H2	Mis-cited evidence	The passage cited for the weakness doesn’t mention search at all. Same passage repeated 6 times.
H3	Category confusion	Table 17’s “Filter” is an information-access level, but it’s mistaken for the Filter skill.
H4	Fabricated meaning	Says “combined success rate 69.8%,” but 69.8 is a Card-level score. The number is right and the label is fake.
H5	Repetition	Same table 3×, same quote 6×, duplicated rows in the reconstructed table.
H6	(minor)	A “(Figure 3)” reference to an image it can’t see is left in.

• This is not a hallucination: the Filter weakness is backed by both the actual low values (Shopping 21 · Accommodation 69) and the paper’s text.

Finding

• Tables = the trustworthy axis.
  • Thanks to <table> HTML, Solar’s numeric citations are 100% grounded, zero invented.
• Reasoning = hallucination.
  • Errors in selecting the weakness, connecting the evidence, and assigning meaning to numbers → value-checking can’t catch this; you need a separate check on the validity of the reasoning. (the core point of this post)
• Charts/figures are unfit as data sources.
  • charts lose the series/legend hierarchy (7/7 item_01); figures are images, so they don’t survive the text path.
• The boundary in one line: tables work because their structure is explicit in the document; charts/figures don’t, because their structure is visual.

Appendix — Code · Dataset

Code (single notebook): exp3_e2e_report.ipynb

• Shared module: code/upstage_eval.py (document_parse · solar_chat).

Dataset: the WebStep benchmark paper (47 pp) — the original isn’t redistributed for copyright reasons.

• Parse cache results/parse/webstep_full.json · report results/report/webstep_review.md · grounding results/exp4_table_fidelity.json
